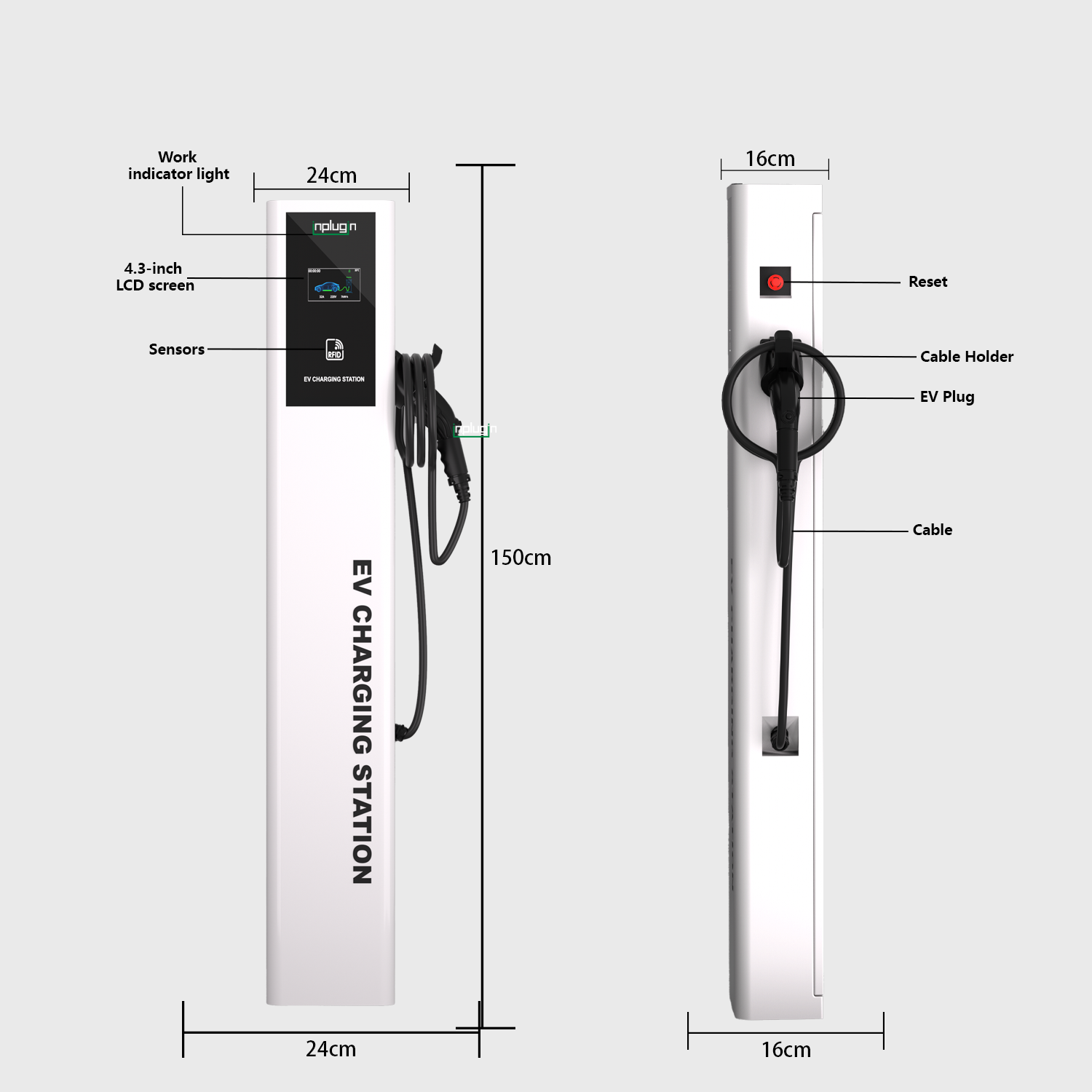

InPlugin ip01 Single-Connector Pile EV/PHEV Charging Station
RFID Card Management System
Built for Durability
Design for Safety
Stable Power Input
Transformer: Converts AC to DC, reducing under-voltage issues and smoothing surge effects.
Over-Current & Short-Circuit
Magnetic Latching Relay: Instantly cuts power when current spikes or short circuits occur.
Leakage
Type-A RCD: Detects AC(≥30mA) leakage and cuts power within 0.1s to avoid shock.
Noise & Surge
Filter Capacitor: Filters grid noise and mitigates voltage spikes for safer operation.
Overheat
Temperature Control Probe: Monitors temperatures and reduces load or shuts down to prevent damage.
Under-Voltage & Surge
Precision Voltage Transformer: Accurately measures and isolates voltage to handle dips or spikes safely.
Short-Circuit & Grounding
Zero-Sequence Current Transformer: It swiftly channels fault currents to ground and promptly disconnects power when abnormal currents are detected.
APP Remote Control
Optional WiFi/Bluetooth Module: Enables remote, real-time monitoring and control via the app.
| Electrical Parameters | |
|---|---|
| Power | 7kW |
| Voltage | Single-Phase AC 85V-275V |
| Max. Current | 32A |
| Power Frequency | 50Hz or 60Hz |
| Basic Functions | |
| Start Mode | Plug and play / NFC / APP / OCPP |
| Multi-level Adjustable Current | 6/8/10/13/16/20/24/32A |
| Hardware Specifications | |
| Display | 4.3-inch Color LCD + LED indicator |
| Cable Length | Customizable |
| Case Material | Stainless Steel |
| Residual-Current Device | 30mA for AC faults (Type-A) |
| Cable Specifications | 3×6mm² + 1×0.5mm² (US: 3*10AWG+1*18AWG) |
| Plugs & Sockets | |
| Vehicle-Side Plug | Type 2 / J1772 / NACS / GB/T |
| Power-Side Plug | Insulated Spade Terminals |
| Operating Environment | |
| Operating Temperature | -35℃ to 55℃ |
| Operating Humidity | 5% - 95%RH |
| Waterproof Rating | IP66 |
