InPlugin is02 WallBox EV/PHEV Charger

Name: InPlugin is02 WallBox EV/PHEV Charger
Brand: InPlugin
SKU: inplugin-lv-is02-Type2-7kw-5m-app-noRFID
Price: 450.0 EUR
Availability: InStock

€450,00 EUR €480,00 EUR

Save €30,00

Shipping calculated at checkout

Cable Length:5 Meters

Max. Power:7 kW (16A)

Connector:3-Pin CEE to Type-2

Variant

Quantity:

All-Weather Protection

IP66 Waterproof

Reliable performance even in heavy rain, ensuring continuous use on wet days.

Works Under All Climate

It operates reliably across a wide temperature range from -35°C (-31°F) to 55°C (131°F).

Fire Resistant

Crafted with SABIC thermoplastics, meeting UL94 V-0 standards to ensure fire safety.

Built for Durability

High Pressure Resistance

Built to withstand up to 1,000 kg of pressure, ensuring the connector remain intact even under a vehicle wheel.

Premium Copper Wiring

Engineered with over standard pure copper wiring, reducing heat buildup by 30% for stable, long-lasting performance.

High-Performance Contacts

5μm silver-plated copper contacts retain 99% conductivity even after 10,000 plug-ins, delivering reliable charging.

Design for Safety

InPlugin EV Charger PCB Diagram

Stable Power Input

Transformer: Converts AC to DC, reducing under-voltage issues and smoothing surge effects.

Over-Current & Short-Circuit

Magnetic Latching Relay: Instantly cuts power when current spikes or short circuits occur.

Leakage

Type-A RCD: Detects AC(≥30mA) leakage and cuts power within 0.1s to avoid shock.

Noise & Surge

Filter Capacitor: Filters grid noise and mitigates voltage spikes for safer operation.

Overheat

Temperature Control Probe: Monitors temperatures and reduces load or shuts down to prevent damage.

Under-Voltage & Surge

Precision Voltage Transformer: Accurately measures and isolates voltage to handle dips or spikes safely.

Short-Circuit & Grounding

Zero-Sequence Current Transformer: It swiftly channels fault currents to ground and promptly disconnects power when abnormal currents are detected.

APP Remote Control

Optional WiFi/Bluetooth Module: Enables remote, real-time monitoring and control via the app.


Electrical Parameters
Power	7kW / 11kW / 22kW
Voltage	7kW (Single-Phase AC 85V-275V) 11kW (Three-Phase AC 380V-480V) 22kW (Three-Phase AC 380V-480V)
Max. Current	32A
Power Frequency	50Hz or 60Hz
Basic Functions
Scheduled Charging	1-12 hours (APP control)
Multi-level Adjustable Current	1-32A (APP control)
Hardware Specifications
Display	4.3-inch Color LCD with APP remote control via Wi-Fi or Bluetooth
Cable Length	5 meters
Case Material	Thermoplastic (Flame retardent grade UL94 V-0)
Residual-Current Device	30mA for AC and 6mA for DC faults (Type-B)
Cable Specifications	7kW: (3 × 6mm² + 1 × 0.5mm²) 11kW: (5 × 2.5mm² + 1 × 0.5mm²) 22kW: (5 × 6mm² + 1 × 0.75mm²)
Plugs & Sockets
Vehicle-Side Plug	Type 2 IEC 62196-2
Power-Side Plug	7kW (32A 3-Pin CEE Plug) 11kW (Insulated Spade Terminals) 22kW (Insulated Spade Terminals)
Operating Environment
Operating Temperature	-35℃ to 55℃
Operating Humidity	5% - 95%RH
Waterproof Rating	IP66

All InPlugin products come with a 2 year warranty.

Two-Year Warranty

Provide unconditional repair or replacement due to product quality issues.

FAQ

Packaging List

Charging Device *1
User Manual *1
Cable Holder *1

What EVs does the charger compatible with? How fast does it charge?

Click me to know :)

Can I plug the EV charger into a regular household socket, or do I need a dedicated circuit breaker?

The 7kW/32A charger uses a 32A 3-Pin CEE Plug, which does NOT NEED a professional electrician need to install.

The 11kW/32A and 22kW/32A charger uses Three-Phase insulated spade terminals, which NEED a professional electrician need to install.

All InPlugin EV chargers are equipped with integrated Type A Residual Current Devices (RCD) or higher, you do NOT have to install additional miniature circuit breakers (MCBs).

Does it have an anti-theft function while charging?

Yes. The vehicle automatically locks the charging connector after the car is locked.

Does the charger support smart features such as remote monitoring and scheduled charging?

Standard (Scheduled Charging)
Standard (APP Remote Monitoring)

Does the charger come with a warranty?

It comes with a 2-year warranty.

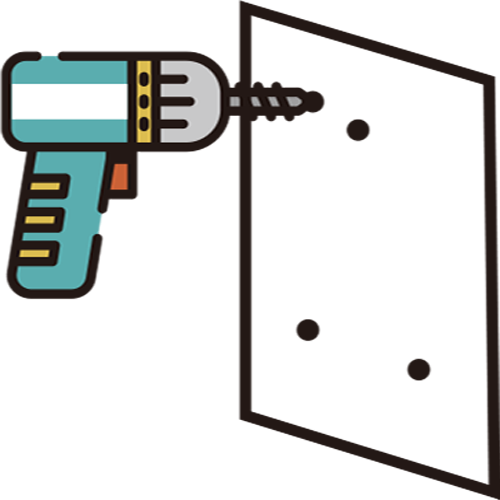

Easy to install—drill through the backplate.

Drill holes using the mounting template.

Easy to install—position holes through the backplate.

Insert M10 expansion anchors into the drilled holes.

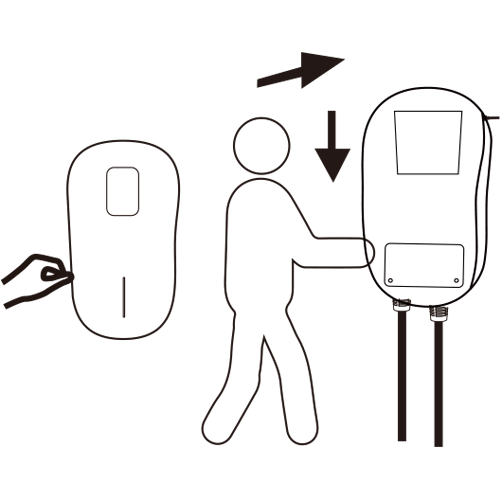

Easy to install—restore the wallbox charger cover.

Remove the top cover, align and secure the charger over the screws.

Easy to install—place the screws into the drilled holes.

Tighten the two base screws firmly to stabilize the charger.

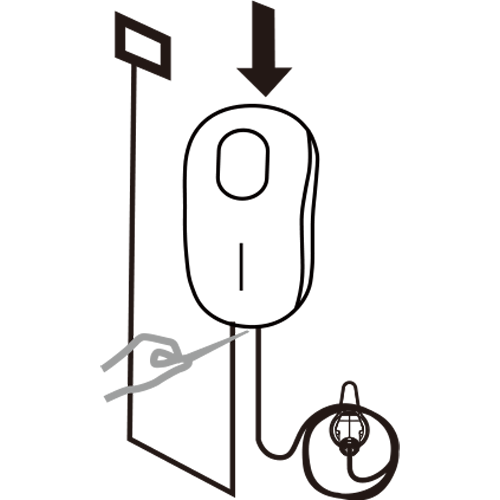

Easy to install—position the wallbox charger.

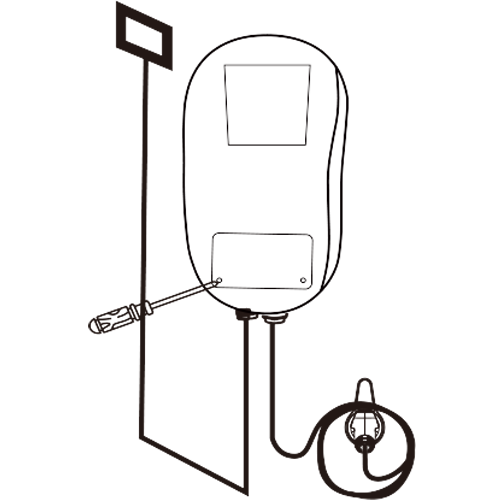

Reattach the top cover and fasten its screws.
